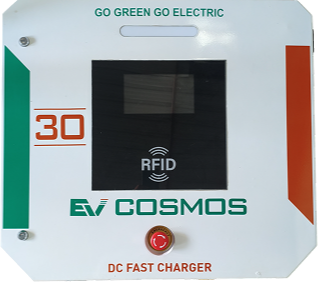

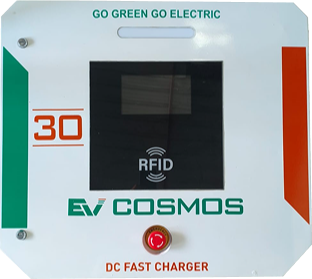

    DC Charger - 30 kW Dual Gun

    General Information

    Product Type: DC Fast Charger

    Model Number: CLD30

    Charger Capacity: 30 kW

    Mounting Type: Wall-mounted

    Electrical Specifications

    Max Output Voltage: DC 150–1000V

    Max Output Current: 100A

    Input Voltage: AC 400V ±10% (Three Phase)

    Input Frequency: 50 Hz

    Input Current (Max): 50A

    Power Factor: ≥ 0.99 (above 50% load)

    Output & Connector Details

    Connector Type: CCS 2

    Number of Outputs (Gun): 1

    Cable Length: 5 meters

    Connectivity & Communication

    Vehicle Communication: PLC-based (as per AIS 138)

    Server Communication: OCPP v1.6 or above

    Network Options:

      • Ethernet (10/100 Base-T)
      • Optional GSM (2G/3G/4G)

    Physical Specifications

    Dimensions: 625 × 700 × 355 mm

    Weight: 70 kg

    Cooling System: Forced Air Cooling

    Environmental Conditions

    Operating Temperature: -25°C to 50°C

    Storage Temperature: -10°C to 55°C

    Humidity Range: 5% to 95%

    User Interface & Authentication

    Display: 7.1-inch touchscreen

    Authentication Methods:

      • Mobile Application
      • RFID Card

    Safety Features

    Internal Safety Protections:

    Over Current Protection

    Under Voltage Protection

    Leakage Protection

    Short Circuit Protection

    Over Temperature Protection

    External Safety Requirements:

    MCB: 63A (4 Pole)

    RCCB: 100mA (4 Pole)

    Surge Protection Device (SPD)

    Build & Protection Standards

    IP Rating: IP55

    Impact Protection: IK10

    Compliance Standards:

      • IEC 61851 (2017)
      • SAE J1722
      • AIS 138
    Smart Powering Reliable Sustainable
    Smart Powering Reliable Sustainable
    Find a Charging Station

    For a Cleaner, Brighter Future

    Our Advantages

    Clean Energy

    Reduces pollution and supports a greener environment.

    Lower Emissions

    Helps cut carbon footprint for a cleaner future.

    Future-Ready Infra

    Scalable charging built for tomorrow’s needs.

    Electric vehicle charging forms the foundation of modern electric mobility, driving innovation, advancing sustainability, and creating lasting environmental impact.

    Do you have

    Any question ?

    What types of EV chargers does EV Cosmos offer?
    EV Cosmos provides a complete range of charging solutions including AC chargers (3.3kW, 7.5kW, 10kW) and DC Fast Chargers (30kW, 60kW and above) suitable for residential, commercial, and highway applications.
    Are EV Cosmos chargers compatible with all electric vehicles?
    Our chargers support industry-standard connectors such as CCS2, Type 2, and AC001, ensuring compatibility with most electric cars and compliant EV models in India.
    Do the chargers support smart connectivity and remote monitoring?
    Yes. All chargers are OCPP-enabled and can be integrated with a Charging Management System (CMS) for real-time monitoring, automated billing, usage tracking, and remote diagnostics.
    What safety features are included in EV Cosmos chargers?
    Our chargers include advanced protection systems such as overcurrent, under voltage, leakage, short circuit, and over-temperature protection, ensuring safe and reliable operation.
    Where can EV Cosmos chargers be installed?
    EV Cosmos charging solutions are ideal for homes, apartments, offices, commercial complexes, fleet hubs, fuel stations, highways, and public charging networks across India.
